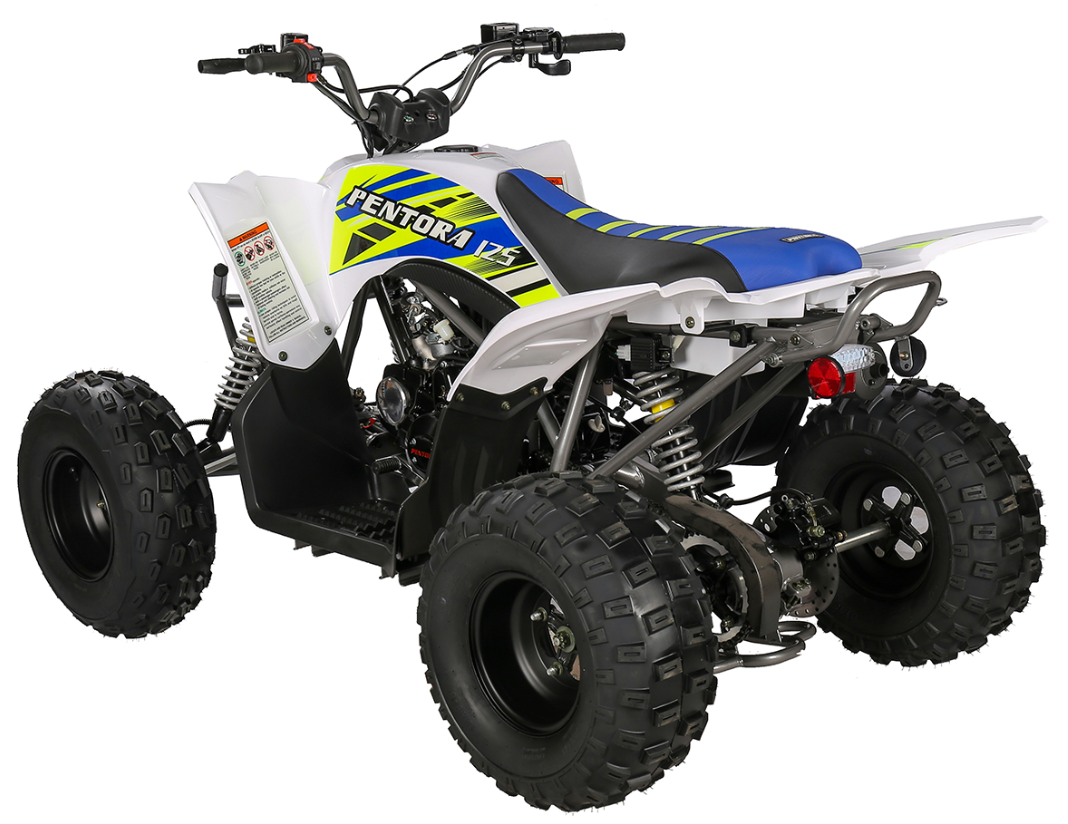

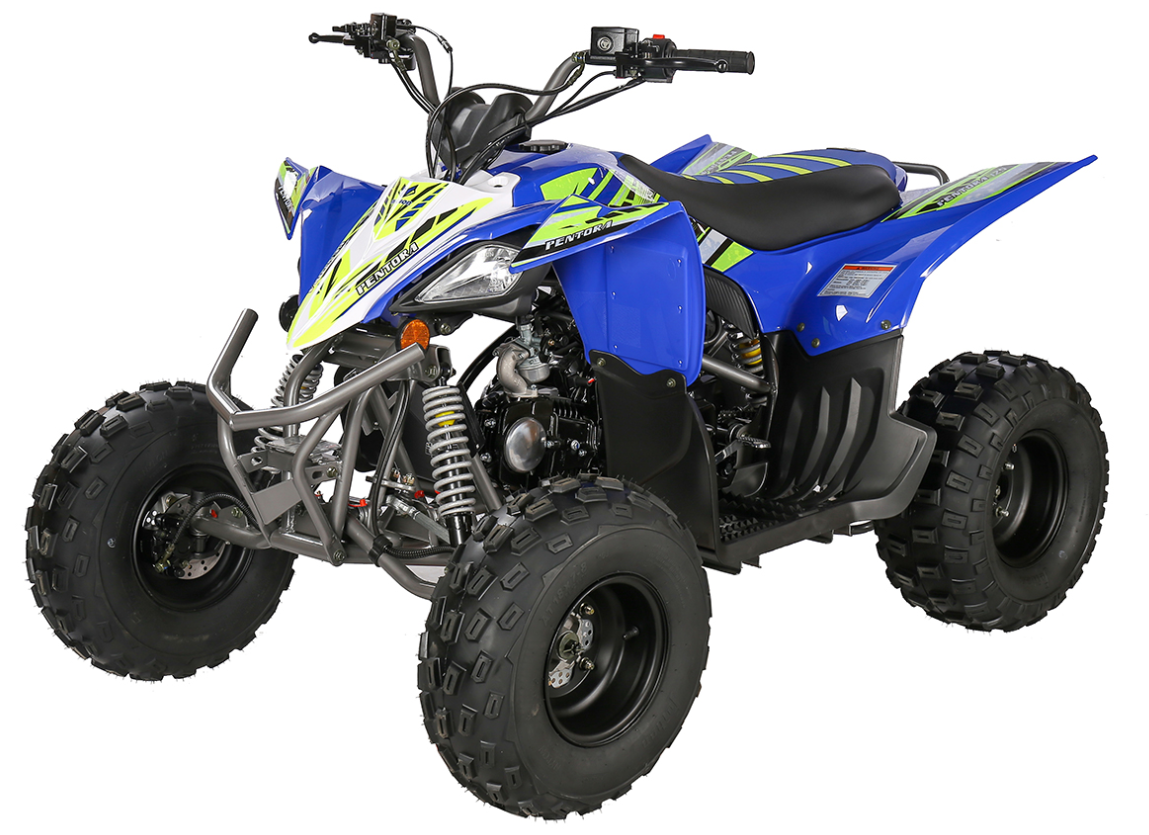

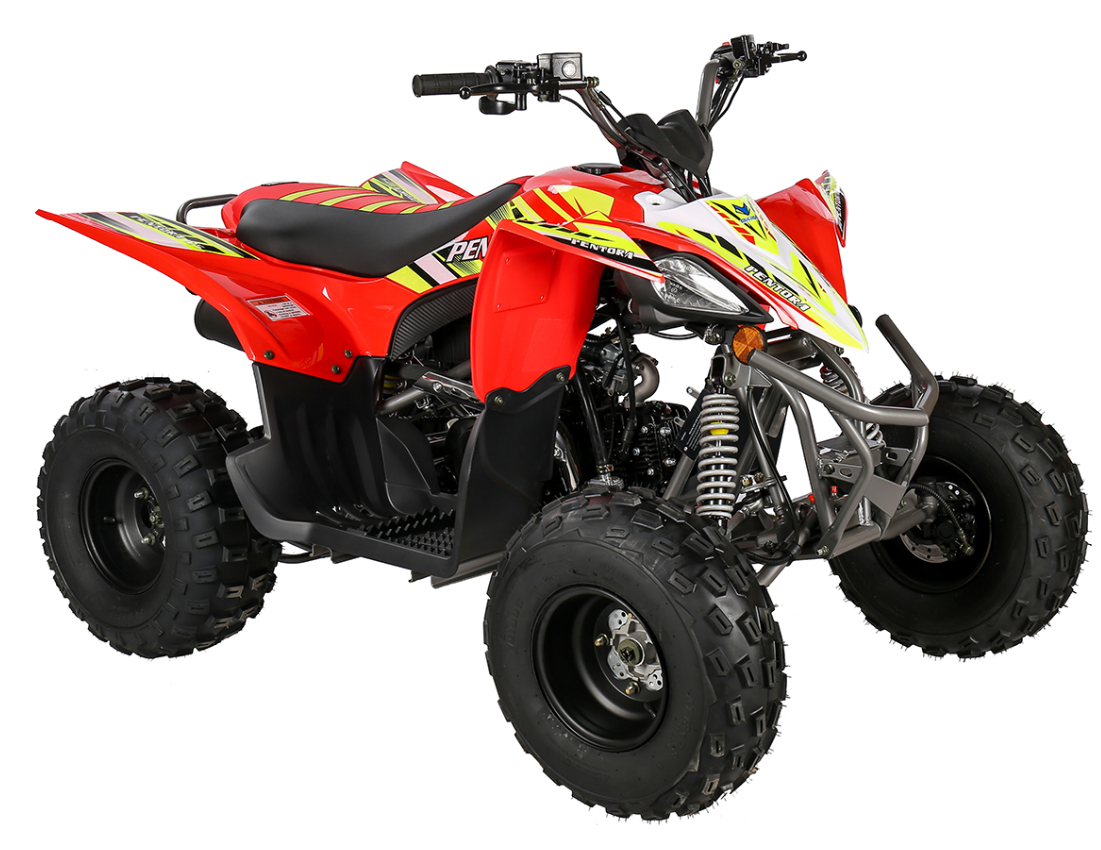

PENTORA 125
PENTORA 125
ATV SPEC
L×W×H
61”X 39”X 42”
2.
WHEELBASE
40.5”±0.7”
3.
FRONT WHEELBASE
34”
4.
REAR WHEELBASE
30”
5.
MINIMUM GROUND CLEARANCE
4”± 0.5”
6.
SEAT HEIGHT
29”± 0.5”
7.
RIDE HEIGHT
8.6”
8.
HANDLE HEIGHT
39.7”
9.
PACKING SIZE
34”X 39”X 26”
10.
FR. SUSPENSION TRAVEL
2”
11.
RR. SUSPENSION TRAVEL
2.3”
12.
MINIMUM TURNING CIRCLE DIAMETER
149.6”
13.
TURNING ANGLE
<45°
14.
SIDESLIP
<5m/km
15.
MAX LOADING
180LBS
16.
NET WEIGHT
265LBS
17.
G. W.
316LBS
18.
F&R BRAKE
FR. & RE. DISC BRAKE
19.
F&R BRAKE OPERATION TYPE
FR. & RE. HAND BREAK
20.
FR./RR. RIM
8INCH
21.
FR./RR. TYRE
18*7-8/18*9-8
22.
FR./RR. TYRE CAPACITY
9 PSI
23.
FR./RR. TYRE
FR./RR. TYRE
24.
ENGINE SPEC
ENGINE TYPE
125CC, AIR COOLER. 4 STROKES
AUTOMATIC WITH REVERSE
25.
MODEL NO.
ZS154FMI
26.
MANUFACTORY
ZONGSHEN
27.
BRORE×STROKE
2.1”× 2.1”
28.
ENGINE CAPACITY
123.67ML
29.
COMPRESSION RATIO
9.0:1
30.
MAX.POWER
〔6.3(1±10%)〕/〔7500(1±5%)〕
31.
MAX.TORQUE
〔8.8(1±10%)〕/〔5500(1±5%)〕
32.
BATTERY
12V/5AH
33.
SPEC
TANK CAPACITY
6.5L
34.
FR./RR. SUSPENSION
OIL DAMPER
35.
FR./RR. SUSPENSION LENGTH
11”/13.5”
