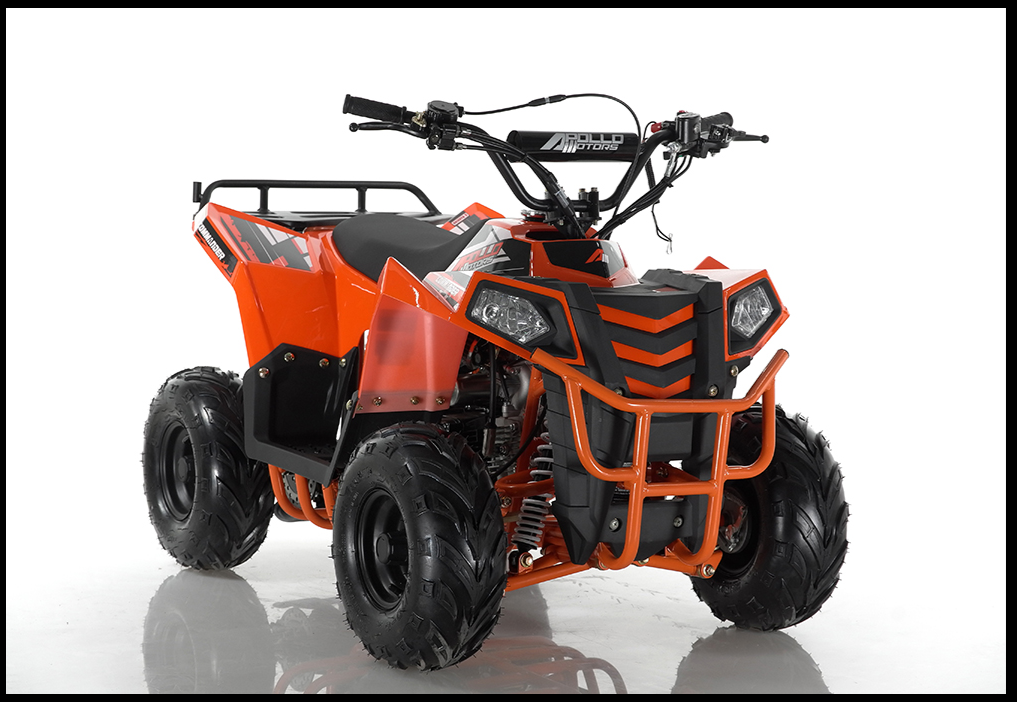

MINI COMMANDER

Seat Height:

22.8"

Model series:

commander

Curb weight:

169.7 lbs.

Engine Type:

Single cylinder 4 stroke

Rated Payload:

143.3 lbs.

Clutch:

automatic with reverse (hand shift)

MAX Speed:

40km/h

Displacement:

106.7cc

MINI turning radius:

98.4"

Bore Stroke:

52.4mm×49.5mm

MAX gradeability:

10°

Compression rate:

9.7:1

Front Brake:

Drum brake-handle

MX Power:

5.0kW/8000rpm

Rear Brake:

Hydraulic brake-handle

MX torque:

5.9N.m/6000rpm

Front Tire:

145/70-6

Idle Speed:

1500±100r/min

Rear Tire:

145/70-6

Mi. Fuel consumption:

≤367g/kw.h

Tire pressure F.:

10P.S.I.

sparking mode:

CDI

Tire pressure R.:

10P.S.I.

starting mode:

Electric

Driving Method:

Chain Drive

Fuel:

RQ-93

Clutch:

automatic multichip

lubricating system:

Pressure and splash

Spark plug:

LGD8TC

Engine Oil:

SAE15W/40

Carburetor:

PZ19

Vehicle desc:

Single seat Chain drive Rear wheel drive

Battery:

12V、5Ah

Vehicle Type:

G

Fuel Tank:

2.5L

Product Size:

47.2"×29.3"×30.9"

Packing Size:

44.8"×27.5"×23.2"

Axle Base:

31.6"

N.W.:

165.3 lbs.

Track front:

24.2"

G.W.:

194 lbs.
