Disc Brake Pad Set for ATVs, UTVs and Scooters - Version 14
Disc Brake Pad Set for ATVs, UTVs and Scooters - Version 14
Couldn't load pickup availability
Chinese Brake Pad Set
Version 14

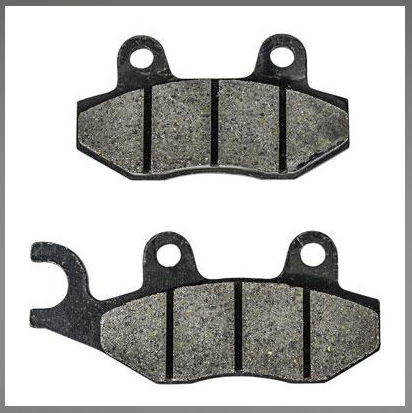

This pad is very similar to our pad 13 except that the open hook is on the opposite side. Please look at pictures closely to determine fit.
This Chinese brake pad set is the replacement part for many 4-stroke Chinese ATVs, Dirt Bikes, Go Karts and Scooters.
Brake pads description:
Overall length of pad without "C" bracket: 77mm
Overall height of pad including tab with hole: 42mm
Overall height of pad at center point not including tab: 27mm
Pad holes center to center: 40mm
Overall length of pad with "C" bracket: 97mm
Overall height of pad including tab with hole: 42mm
Overall height of pad at center point not including tab: 27mm
Pad holes center to center: 40mm
Known to fit Chinese brands, Coolster, TaoTao, Yamoto, Redcat, etc., along with some Kazuma models.
